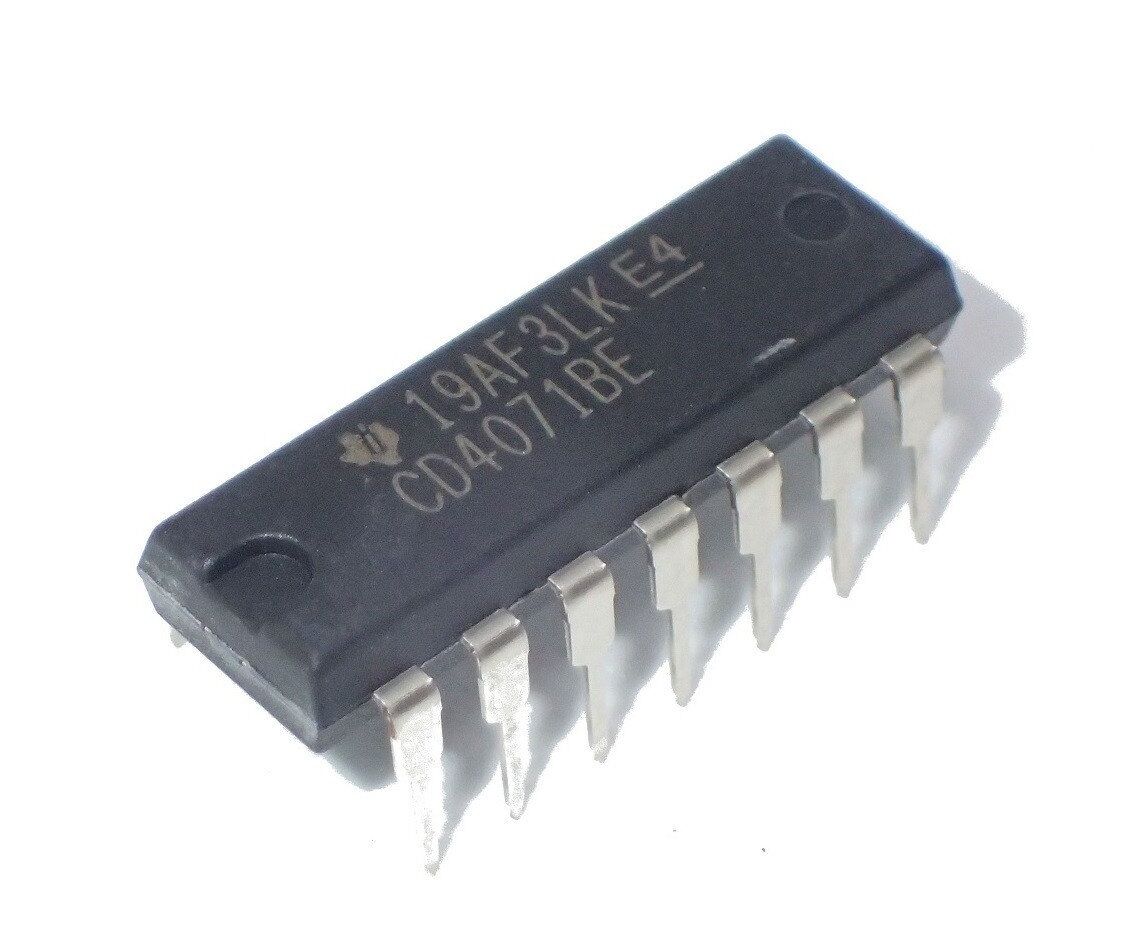

CD4071BE CD4071 CMOS Quad 2-Input OR Gate
₹ 19.60
₹ 31.60
Shipping calculated at checkout.
Description:
The CD4071BE OR gates, provide the system designer with direct implementation of the positive-logic OR function and supplement the existing family of CMOS gates.
Included:
- CD4071BE
This item features:
- Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Standardized, symmetrical output characteristics
- Noise margin (full package-temperature range):
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 V at VDD = 15 V - 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of âBâ Series CMOS Devices"
Condition:
- New and Authentic Component(s) - CD4071BE CMOS Quad 2-Input OR Gate IC.
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
General details:
- We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
