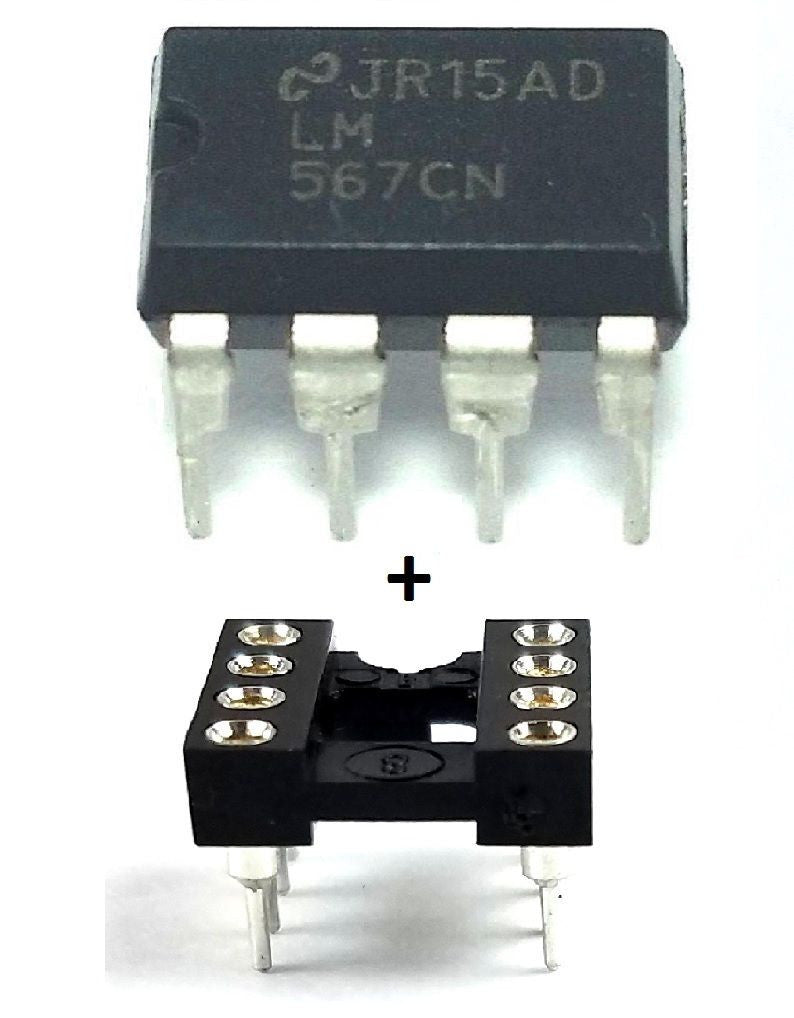

LM567CN LM567 + Socket - Tone Decoder DIP-8
₹ 84.80
₹ 151.60
Shipping calculated at checkout.
Description:
The LM567CN are general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
Included:
- LM567CN
- 8-Pin DIP Sockets with Machined Contact Pins
This item features:
-
20 to 1 frequency range with an external resistor
-
Logic compatible output with 100 mA current sinking capability
-
Bandwidth adjustable from 0 to 14%
-
High rejection of out of band signals and noise
-
Immunity to false signals
-
Highly stable center frequency
-
Center frequency adjustable from 0.01 Hz to 500 kHz
Condition:
- New and Authentic Component(s) - LM567CN Tone Decoder IC + Socket.
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
