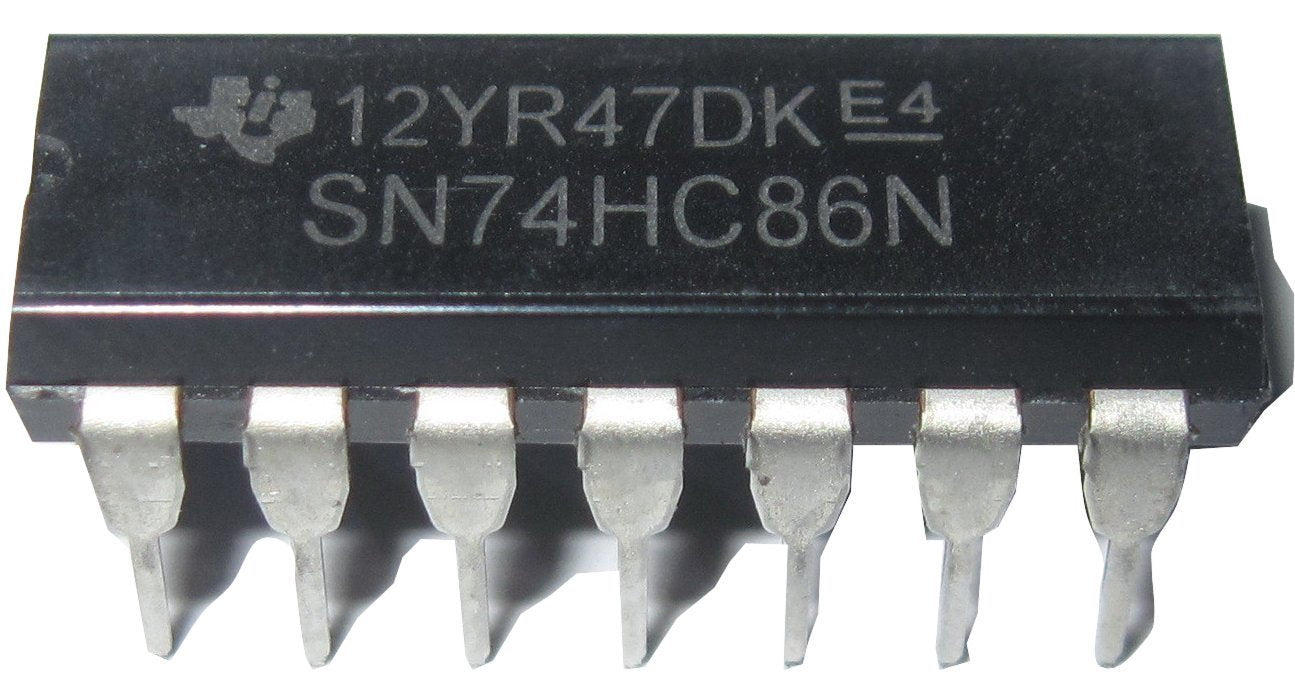

SN74HC86N 74HC86 Quadruple 2-Input Exclusive-OR Gates IC
₹ 19.60
₹ 33.60
Shipping calculated at checkout.
Description:
These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A
B or Y = A\B + A(B\) in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Included:
SN74HC86N
This item features:
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20-µA Max ICC
- Typical tpd = 10 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1 µA Max
- True Logic
Condition:
- New and Authentic Component(s) - SN74HC86N Quadruple 2-Input Exclusive-OR Gates ICs.
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
General details:
Package Contains
